by Matthew Harris on October 20, 2006 in Storage

With the introduction of the nForce 4 chipset we saw the beginning of cheap and easy mass storage options. With this revolutionary change we also see a need for Hot-swappable SATA drive bays for RAID-5 arrays made possible. Today we take a look at the new offering from ICY DOCK that allows for three drives in an easily achieved space.

Page 2 – Closer Look, Conclusion


Inside the package the MB453 is wrapped up in a plastic bag that has the instructions in it, the screws are in a small poly bag taped to the side. Don’t lose these screws! They’re countersunk to work with this enclosure. Standard HDD screws won’t cut the mustard with this unit.

The label on top of enclosure shows all of the connections for this model. For a server mobo or RAID card that supports it you can use the LED’s built into the MB453 to show you which drive has failed at a glance. If your board or card doesn’t support this feature don’t worry, your software will tell you. You’ll just have to remember which drive corresponds to which tray. There’s also a switch that allows you to choose three pre-determined alarm levels on the overheating alarm. You can choose from 45*C, 55*C and 65*C. I personally set it to 45*C. The temp is monitored by an internal diode mounted on the rear PCB.

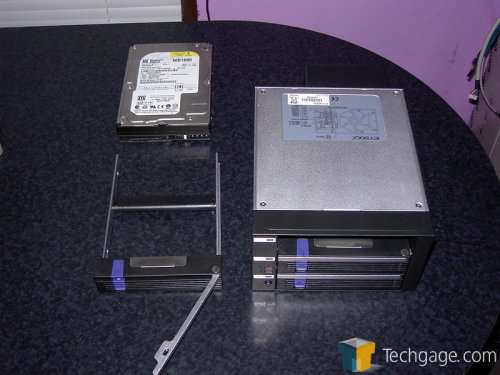

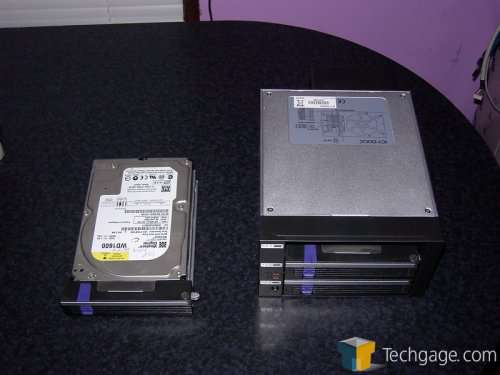

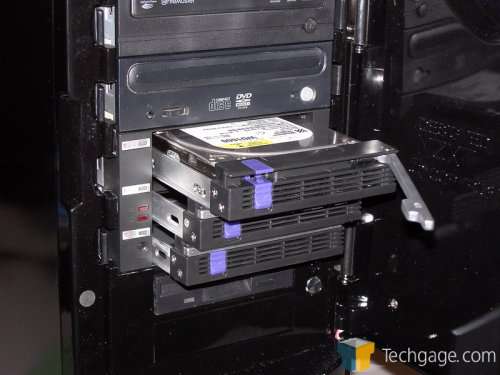

As you can see, each tray isn’t a traditional tray. The drive doesn’t fit inside it as much as it attaches to the drive. You pull the support from the center (saving the screws) and then use the counter sunk screws and the screws from the support to attach the rails to the drive. The drive is held onto each rail with three screws for a very secure attachment. The drives then slot into the MB453 and interface with the connectors at the end of the bay as seen in this last pic.

Their aren’t any cables inside the MB453, instead the drive interfaces directly with the PCB at the end of the bay. You can also see the openings in the PCB for the air to circulate through for the forced air cooling. The LED’s adjacent to the drive bays light up green to show power to the drive, orange to show the drive being accessed and as I said before, with failure red to show a failed drive.

In use the MB453 is transparent. I get the same performance with my drives in it as I did with them directly attached to the SATA cables. No hit in performance at all. You’re not forced to use the MB453 for RAID at all though, if you’re like me and just need somewhere to put your drives other than the HDD cage in your case this is the ticket. You get great cooling, lose 2-5.25" bays to fit three HDD’s and the convenience of being able to add in another drive to your PC while booted into your OS.

The only thing that’s a bit of a downer is the fan. I won’t mince words here, it’s loud. Not mind numbingly loud mind you, it is livable but you might want to investigate another fan to swap into the included fan holder. I’m using it in the NZXT Zero which has a door on it, the door does an excellent job off muffling the din raised by the fan and has no real impact on cooling. I’ve experimented with doing huge transfers and monitoring the drive’s temps with the door open and closed and the temps never fluctuated at all. The MB453 retails for just under $100 and while this a bit on the pricey side it does offer a very good value when compared to traditional single drive bay enclosures that tend to retail for around $40. With two of those you only get space for two drives and you’re stuck with sub-standard cooling afforded by the measly 40mm fans that are used with those types of bays.

Overall I’m awarding the ICY DOCK MB453 a 9/10 and our Editor’s Choice award for bringing this beautiful piece of geek nirvana to the needy power users in the PC enthusiast world. If you’re in need of storage for your storage I suggest you stop by ICY DOCK’s site and see what they have to offer, there’s a whole lot of love to be had.
