Palm Treo 700w Smartphone
Bookmark and Share

Print
by Greg King on December 21, 2006 in Smartphones

The 700w from Palm packs a lot into it’s small frame. This smartphone runs on the feature-rich Windows Mobile 5.0, includes a 1.3MP camera, good battery life and a full QWERTY keyboard.

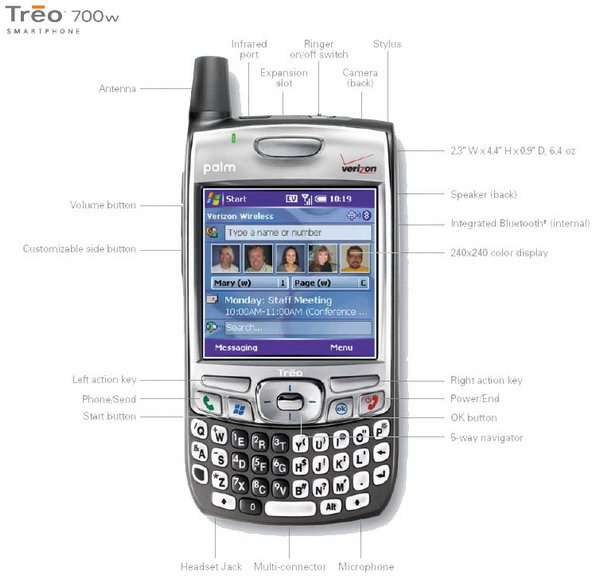

Closer Look


On the bottom of the keyboard, flanking the spacebar, are two shift keys. These work just like the keys on a desktop keyboard and allow you to use upper case letters. To the far right of the keyboard on the bottom, there is a small button with the entire top being dark gray. Think of this as a function button. If you want to use the “@” symbol, you would simply press this button and then the “I” key. Not much to it and it adds a lot of depth to the Treo as an emailing piece of hardware.

To give you an idea of what 240×240 really looks like, here is a quarter on the screen of the Treo. Ahh, the state of Wisconsin, known for their cattle, cheese and football (not shown.)

Moving away from the front of the Treo, the back of the smartphone is home to the Treo’s 1.3 megapixel camera as well as the external speaker. If you notice, there is a small convex circle to the right of the camera itself. This is a self portrait mirror that allows you to get a good idea of the orientation of your picture should you be vain enough to take pictures of yourself. Directly below the camera is the speaker. This is where your ringtone will come out of as well as any audio that you might have your Treo play.

Under the camera and speaker, there is a door that covers up the battery.

On the left side of the phone there are 3 buttons. The two that are together are for volume control. The bottom button can be programmed to do any number of commands.

On the top of the Treo, there is a mute switch, an infrared port and interestingly enough, an SD flash disk slot. While the 700w comes with 128MB of internal memory, only 60MB of it is usable for the owner. Because 60MB can fill up fast these days, even on phones, the SD slot adds a lot to the overall package of the Treo. Accessed through Windows Mobile, the user can store music, pictures, videos or anything else that one can think of.

No smartphone is complete without its stylus. With this in mind, Palm provides not only a quality stylus, but a convenient place to store it away. Running down the left side of the Treo on the back side, the aluminum stylus is truly a solid piece of work.

Specs

Before we get into the phone itself, let’s take a look at exactly what we are looking at. Straight from Palm, here are the specs of the Treo 700w.

  • Operating System: Windows Mobile 5.0 Pocket PC Phone Edition
  • Memory: 128MB (60MB user accessible) non-volatile
  • Processor: Intel XScale 312MHz processor
  • Screen: 240 x 240 color TFT touch screen display, 16-Bit color with 65K+ colors
  • Wireless: 800/1900MHz nationwide digital phone, Bluetooth
  • Digital Camera: 1.3 megapixel with a max resolution of 1280×1024, Automatic light balancing, 2x digital zoom
    Self portrait mirror, Video capture
  • Audio: 2.5mm headset jack (stereo compatible), Speaker, Windows Mobile Media Player 10, Polyphonic MIDI, MP3, WAV and video ringtones
    External ringer on/off switch with vibration mode
  • Keyboard: Full QWERTY key layout with complete backlighting, Integrated number dialing pad, Keyguard feature
  • Expansion Slot: Support for MultiMedia, SD and SDIO cards
  • Battery: Removable and rechargeable Lithium-Ion battery, Up to 5 hours talk time and more than 300 hours stand-by time
  • Power/Sync: Multi-connector on device, USB sync cable, AC adapter (108-132 VAC/60Hz)
  • Size: 2.3” x 4.4” (excluding antennae) x 0.9” (W/H/D), 58mm x 113mm x 23mm (W/H/D)
  • Weight: 6.4 ounces / 180 grams

In all of those specifications, there are a few pieces that truly stand out to me. I am personally interested in the ability to sync the Treo with my PC and of course, the battery life needs to live up to the implied times in the spec sheet.

For those of you who are dedicated Treo users, you will notice that the 700w has a smaller screen than the older 650 Treo. While I have not worked with the 650 model, I have not had any problems with the display on the 700w. The colors are bright and ultimately the screen is easy to read.

Features and Usage

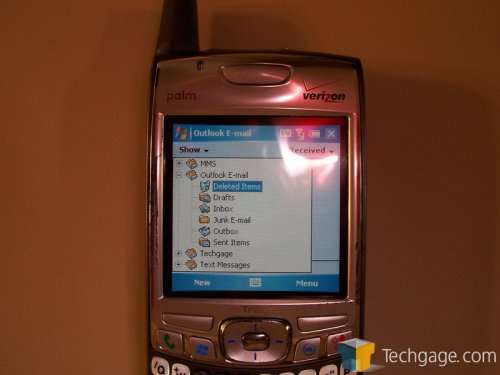

Windows Mobile is far and away the feature that stands out the most on the 700w. With Windows Mobile comes Word, Excel and power point. Word and Excel work much the same way that the desktop versions while Power Point will allow you to go over a presentation before you have to present it. Working in IT with a background in sales, I can certainly appreciate Power Point on the go. With corporations in Palm’s crosshairs, Outlook is the bread and butter of the Treo 700w. Using Verizon’s mobile broadband, emails can be sent and received in real time, allowing seamless communication even when you’re not at your desk.

Another method of connecting to other people and devices is Bluetooth. Included with the 700w, Bluetooth allows the owner to use a Bluetooth hands-free headset should the provided wired headset not be enough. One last method of connecting to other people and devices is the Treo’s built in infrared port. Something that the Treo isn’t capable of is Wi-Fi. While not a huge downer, you will not be able to use the 700w as a mobile modem with Wi-Fi. It is documented however, that Palm’s very own Wi-Fi card that fits nicely in the top SD slot. If Wi-Fi is a must, this is your only avenue to take and while it’s not included in the package, it’s nice to know that it can be done.

Another feature that desktop users might recognize is Microsoft’s media player. Included is the Windows Mobile install, allowing users to listen to their MP3’s and watch videos that they might have stored on their flash card. The Treo 700w supports MP3, WMA and WMV, adding a bit of diversity to the 700w from a media standpoint.
