by Rob Williams on March 16, 2019 in Graphics & Displays

NVIDIA’s Turing-infused Quadro RTX 4000 sets out to be a super-fast performer for its $900 price tag, but it also brings a couple of tricks. Those include some RTX special features, like Tensor and RT cores, which already come in addition to architectural enhancements that helps the card leap far ahead of the older P4000.

Page 4 – Viewport: SolidWorks, CATIA, Siemens NX, PTC Creo, 3ds Max & Maya

SPECviewperf 13: Autodesk 3ds Max
Cadalyst: Autodesk AutoCAD 2016
SPECviewperf 13: Dassault Systèmes CATIA
SPECviewperf 13: PTC Creo
SPECviewperf 13: Energy
SPECviewperf 13: Autodesk Maya
SPECviewperf 13: Medical
SPECviewperf 13: Siemens NX
SPECviewperf 13: Dassault Systèmes SolidWorks


Dassault Systemes SolidWorks Viewport Performance (NVIDIA Quadro RTX 4000)

We’ve come to the part of the review where we’ll encounter some hard-to-predict results. With gaming, a stack of cards will scale pretty much the same from title to title, with the odd exception where some heavy optimization for one vendor is employed. Gamers don’t really need to worry that much about which vendor supports the latest AAA title better than the other, but design is a whole different ball game.

In the SPECviewperf take on SolidWorks seen above, the RTX 4000 slots in just behind the Quadro P6000, and just ahead of the Radeon Pro WX 8200. Huge gains were seen earlier in the review for the RTX 4000 versus the older P4000, but both cards are close here. If it’s a pro card, it’s going to run well.

Dassault Systems SolidWorks 2019 - RealView Off
SolidWorks RealView Off
Dassault Systems SolidWorks 2019 - RealView On
SolidWorks RealView On

In February, we were hooked up with a SolidWorks license so that we could dig into some real benchmarking. Ultimately, we wanted to see how real-world results scaled with SPECviewperf, and quite honestly, we didn’t expect as much of a divide between vendors as we did:

Dassault Systemes SolidWorks Viewport RealView On Performance (NVIDIA Quadro RTX 4000)

This first chart takes a look at SolidWorks with its RealView feature on. During production, users can use RealView improve the appearance of the model in the viewport. That’s thanks to improved shadows and reflections (examples seen above). Because our SolidWorks license was time-limited, we couldn’t dig in deeper and figure out what caused Radeon cards to lag behind NVIDIA’s so much, but the difference is striking.

It’d be a little misleading to say that Radeon performs poorly here, because the WX 8200 still pushes 69 FPS on average. That said, even the lowbie Quadro P2000 outperforms that card, so NVIDIA has an obvious advantage here.

Dassault Systemes SolidWorks Viewport RealView Off Performance (NVIDIA Quadro RTX 4000)

The same performance scaling is seen with RealView Off, but at that point, the performance is suitable even on the smallest Radeons. Interestingly, the TITAN Xp, which NVIDIA granted some workstation perks to, does not run well in SolidWorks at all. However, the TITAN Xp can at least run RealView, whereas gaming cards cannot.

If the opportunity arises to test SolidWorks more in the future, we’ll dig much deeper into performance.

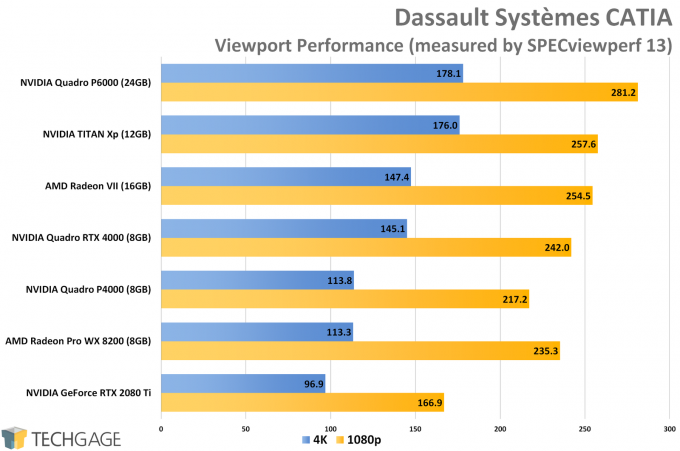

Dassault Systemes CATIA Viewport Performance (NVIDIA Quadro RTX 4000)

CATIA isn’t as concerned with workstation GPU-specific optimizations, so the faster the GPU under-the-hood, the better the performance is going to be. CATIA is of course one of those applications that pretty much implies that you should be using a professional-level card anyway, to ensure the best possible stability, but students are not going to be held back with performance if stuck with a gaming GPU.

Siemens NX

Siemens NX Viewport Performance (NVIDIA Quadro RTX 4000)

Siemens NX is arguably the most interesting test on this page, because it treats gaming GPUs like a bunch of worthless punks. Even NVIDIA’s fastest gaming GPU can’t breathe here. AMD’s Radeon VII for some reason outperforms it by a wide margin, but it still falls completely flat in comparison to the pro cards.

With the pro cards, all of the GPUs perform admirably, with NVIDIA’s RTX 4000 showing huge gains over the last-gen P4000 – just what we like to see.

PTC Creo

PTC Creo Viewport Performance (NVIDIA Quadro RTX 4000)

Creo is another application that’s optimized very well for ProViz GPUs, which helps a card like the WX 8200 outperform the technically faster Radeon VII. On the green side, the RTX 4000 sits just behind the P6000, and really, not that far behind. At the same time, the newer card again reveals a big performance delta between it and the older model it replaces.

3ds Max & Maya

Autodesk 3ds Max Viewport Performance (NVIDIA Quadro RTX 4000)
Autodesk Maya Viewport Performance (NVIDIA Quadro RTX 4000)

Both AMD and NVIDIA treat 3ds Max and Maya as very important design suites, but fortunately, neither company holds back performance on their gaming GPUs. On the pro-GPUs, some functions and stability will be improved, but overall, both are pretty neutral for GPU comparisons.

For even complex scenes, any one of these GPUs is going to deliver ample performance, but where the bigger cards will prove beneficial is with certain viewport rendering modes. Wireframe and solid shading might not be too demanding, but if you want to use interactive rendering, the faster the GPU, the reduced strain on your sanity.

Medical & Energy

Medical Viewport Performance (NVIDIA Quadro RTX 4000)
Energy Viewport Performance (NVIDIA Quadro RTX 4000)

The boost seen in the energy test on the RTX 4000 warrants a look here, since it highlights some of the architecture enhancements NVIDIA crammed into Turing. The performance boosts are not enough to topple the Radeon VII with the Medical test, beating out even the 2080 Ti. That card’s super-fast 1TB/s memory might be helping out with things there.
